Marine Steel Hatch Cover-Type B
DATE:2014-04-15 10:10:08

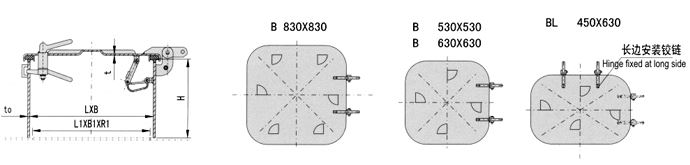

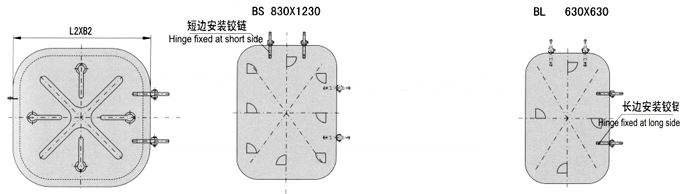

Steel small size hatch cover- Type B

Nominal size Size of clear Size of cover Thick of cover Wedge type handle cleat quantity
L*B (mm) L1*B1*R (mm) L2*B2 (mm) T (mm)
450*630 420*600*100 508*688 4 4
512*692 6
516*696 8
530*530 500*500*100 588*588 4
592*592 6
596*596 8
630*630 600*600*100 688*688 4
692*692 6
696*696 8
630*830 600*800*100 688*688 4
692*692 6
696*696 8
830*830 800*800*100 888*888 4 6
892*892 6
896*896 8
830*1230 800*1200*100 888*1288 4 8
892*1292 6
