YWC Series 15ppm Bilge Separator3.00
YWC Series 15ppm Bilge Separator3.00
DATE:2013-08-08 16:08:15

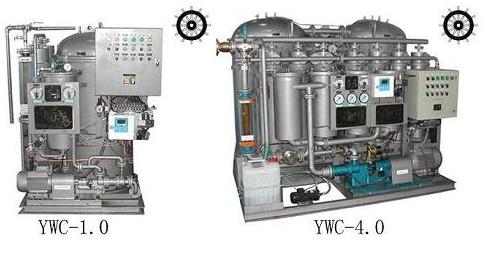

Product No. YWC Series 15ppm Bilge Separator
Type Ywc-0.25 Ywc-0.50 Ywc-1.0 Ywc-1.50 Ywc-2.00 Ywc-2.50 Ywc-300 Ywc-4.00 Ywc-5.00
Rating/max Capacity(m³/h) 0.25/0.31 0.5/0.62 1.0/1.25 1.5/1.87 2/2.25 2.5/3.12 3/3.75 4.0/5.0 5/6.25
Power of pump(kw) 0.75 1.1 1.1 1.1 2.2 2.2 3 3 3.75
Electric heater power(kw) 1 3 option option option / / / /
Steam heater(O/kw) / / 130 1/45 2/60 2/75 3/90 4/120 5/150
15ppm Bilge Alarm incuded incuded incuded incuded incuded incuded incuded incuded incuded
Base(channelsteel)(mm) #5 1000*600 #6 1100*690 #6 1050*1080 #6 1100*1130 #8 1900*1120 #8 1900*1120 #8 1700*1500 #8 2280*1700 #5 2590*2000
Hight(mm) 1320 1460 1500 1660 1700 1900 2020 1820 1900
Dry/wet weight(kg) 300/400 600/800 800/860 1060/1810 1260/2260 1500/2800 1800/3200 2100/3900 2500/4600
Applicable ship vessel 1000DWT 1000-5000DWT 5-10KDWT 10-30KDWT 30-50KDWT 50-100KDWT 100-200KDWT 100-300KDWT 300KDWT above
